pGDX

PGR* PGB*
pGDX
pGDX pGDX pGDX pGDX

  • Allgemeine Merkmale

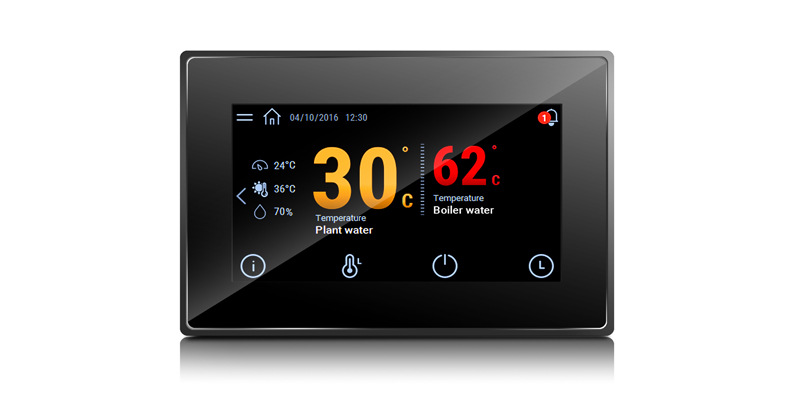

    The pGDx family is CAREL's response to the needs of an increasingly demanding market in terms of size and performance, for interfacing with the pCO and c.pCO sistema family controllers.

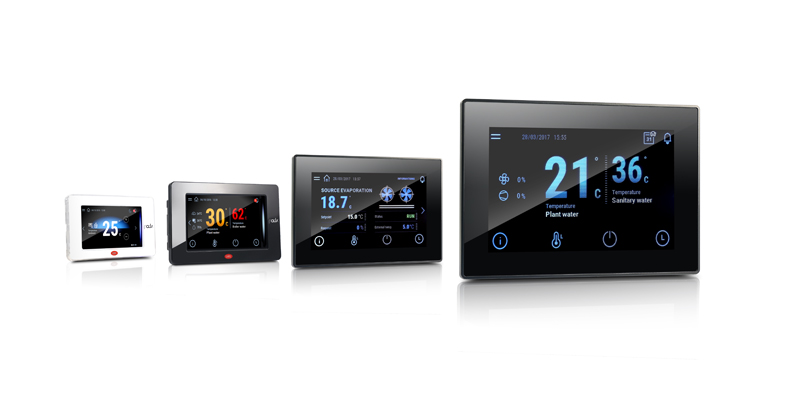

    To ensure maximum flexibility, several different versions are available, in terms of screen size (4.3”, 7”, 10” and 15”), connectivity (RJ12, one or two Ethernet ports, WiFi) and types of touchscreen (resistive/capacitive).

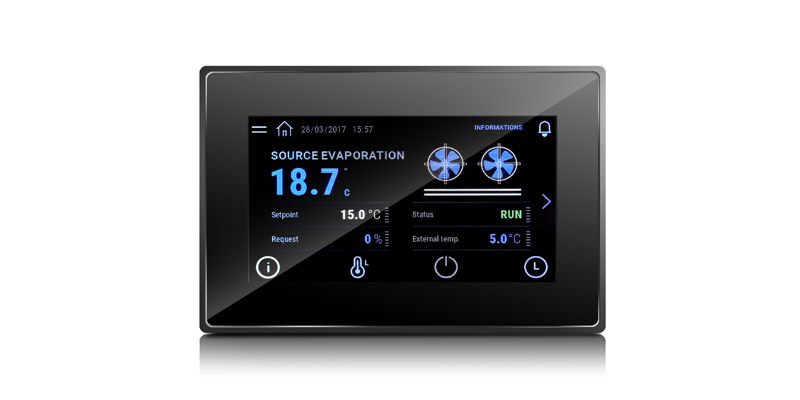

    Starting from the pGDx 4.3”, which can be used to evolve HVAC/R units designed for the pGD1 without modifying any of the electrical connections, the proposal has been expanded to include the brand-new pGDx 7”; this takes the concept of unit terminal to a whole new level, extending connectivity via the WiFi connection (both in Access Point and Station mode). The range is completed by 10” and 15” capacitive displays that guarantee the highest levels of performance.

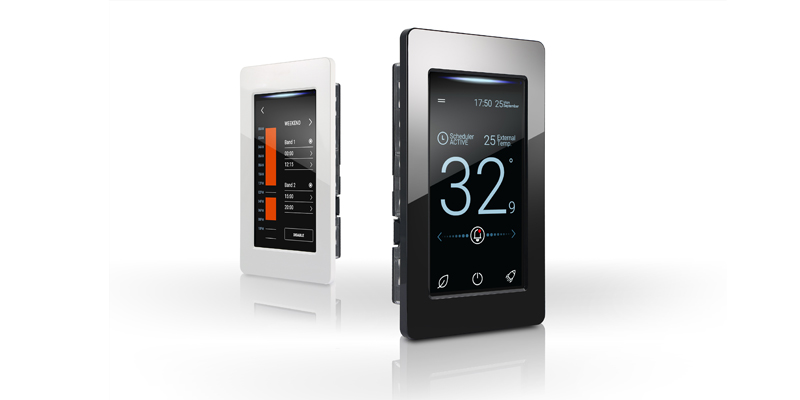

    Furthermore, when combined with specific accessories, the various different models can be installed in multiple applications and a wide range of environments; either as an indoor or outdoor unit terminal, or as a room terminal.
    All of the displays in the new CAREL range are programmable using the c.touch suite, allowing quick conversion of projects created with the previous suite (1tool touch editor for pGDTouch).

  • Vorteile

    Built-in temperature and humidity probe

    Can share the values read with both the display and the connected controller. This new feature means concrete advantages for the room terminal solution: just one single device can be used, rather than two, to manage the function of both instruments. [valid for 4.3" and 7"]

    Micro-USB port

    At the front, concealed by a faceplate, for easier access. [valid for 4.3" and 7", full USB for 10" and 15"].

    Wifi

    For wireless communication between the unit displays (4.3” and 7”) and the controller networks and any external devices. The displays can be used as a Wireless Access Point (WAP) or as a Wireless Client Station. This makes data control easier. [valid for 4.3" and 7"]

    Dual Ethernet port

    Increases the connectivity and data usage functions. These can in fact be configured in two different ways: dualMAC and switch. [valid for 7", 10" and 15"].

    The CONTROLLA app

    Makes the data easier to read by using the display’s WiFi connection. Using their own mobile device, tablet and/or smartphone, users can view the desired information without needing to interact directly with the display, making it no longer necessary to be physically present.  [valid for 4.3" and 7"]





Dokumentation

Technical

  • Technical Leaflets
    Code Beschreibung Sprache Datum * Release
    Code +050001555

    Beschreibung pGDx Terminale utente pGDx10” / 15” - pGDx 10” / 15” user terminal

    Sprache ENG  ITA

    Datum 05/05/2020

    Release 1.0

    Code +050001551

    Beschreibung pGDx 10" Terminale utente pGDx 10” / User terminal pGDx 10"

    Sprache ENG  ITA

    Datum 29/04/2020

    Release 1.1

    Code +05C001950

    Beschreibung User terminal pGD Touch 7”

    Sprache CHI  ENG

    Datum 02/03/2020

    Release 1.3

    Code +050001953

    Beschreibung pGDx Графический терминал pGDx Touch 7” - User terminal pGDx Touch 7”

    Sprache ENG  RUS

    Datum 02/03/2020

    Release 1.3

    Code +050001952

    Beschreibung pGDx Terminal del usuario pGDx Touch 7” - Terminal usuário pGDx Touch 7”

    Sprache POR  SPA

    Datum 02/03/2020

    Release 1.3

    Code +050001951

    Beschreibung pGDx Terminal utilisateur pGDx Touch 7” - 7-Zoll-Terminal pGDx Touch

    Sprache FRE  GER

    Datum 02/03/2020

    Release 1.3

    Code +050001950

    Beschreibung pGDx Terminale utente pGDx Touch 7” - User terminal pGDx Touch 7”

    Sprache ENG  ITA

    Datum 02/03/2020

    Release 1.3

    Code +050001898

    Beschreibung pGDx Графический терминал pGD Touch 4.3” - User terminal pGD Touch 4.3”

    Sprache ENG  RUS

    Datum 02/03/2020

    Release 1.4

    Code +050001897

    Beschreibung pGDx Terminal del usuario pGDx Touch 4.3” - Terminal usuário pGDx Touch 4.3”

    Sprache POR  SPA

    Datum 02/03/2020

    Release 1.4

    Code +050001896

    Beschreibung pGDx Terminal utilisateur pGD Touch 4.3” - 4.3-Zoll-Terminal ‹pGD Touch›

    Sprache FRE  GER

    Datum 02/03/2020

    Release 1.4

    Code +05C001895

    Beschreibung pGDx Touch 4.3” - User terminal pGD Touch 4.3”

    Sprache CHI  ENG

    Datum 02/03/2020

    Release 1.4

    Code +050001895

    Beschreibung pGDx Terminale utente pGDx Touch 4.3” - User terminal pGD Touch 4.3”

    Sprache ENG  ITA

    Datum 02/02/2020

    Release 1.4

    Code +050001860

    Beschreibung PGB07010FBCA0 - PGB10010FCCA0 - PGB15010FCCA0: Installation guide / Montageanweisung / Notice d`installation / Instrucciones de montaje / Guida di installazione

    Sprache ENG  FRE  GER  ITA  SPA

    Datum 22/03/2019

    Release 2.2

  • 2D/3D drawings
    Code Beschreibung Sprache Datum * Release
    Code 2d-3d - pGDX7.zip

    Beschreibung 2D-3D drawings

    Sprache ALL

    Datum 28/02/2020

    Release R0

    Code 2d-3d pGDX - Panel RJ12.zip

    Beschreibung 2D-3D drawings

    Sprache ALL

    Datum 22/09/2017

    Release R0

    Code 2d-3d pGDX - Wall Surface.zip

    Beschreibung 2D-3D drawings

    Sprache ALL

    Datum 22/09/2017

    Release R0

    Code 2d-3d pGDX - Wall Flush.zip

    Beschreibung 2D-3D drawings

    Sprache ALL

    Datum 22/09/2017

    Release R0

    Code 2d-3d pGDX - Panel Serial-Ethernet.zip

    Beschreibung 2D-3D drawings

    Sprache ALL

    Datum 22/09/2017

    Release R0

    Code 2d-3d pGDX - Panel serial.zip

    Beschreibung 2D-3D drawings

    Sprache ALL

    Datum 22/09/2017

    Release R0


Commercial

  • Product guide
    Code Beschreibung Sprache Datum * Release
    Code +800004031

    Beschreibung Solutions for Air Handling Units: Technology and expertise for indoor air quality and energy saving

    Sprache ENG

    Datum 01/07/2021

    Release 1.0

    Code +800004030

    Beschreibung Soluzioni per Unità Trattamento Aria: Tecnologia e competenza per la qualità dell’aria e il risparmio energetico

    Sprache ITA

    Datum 01/07/2021

    Release 1.1

  • Brochure
    Code Beschreibung Sprache Datum * Release
    Code +3000164ES

    Beschreibung Soluciones para la integración de instalaciones HVAC

    Sprache SPA

    Datum 09/09/2019

    Release 2.0

    Code +3000164EN

    Beschreibung Solutions for integration of HVAC systems

    Sprache ENG

    Datum 09/09/2019

    Release 2.0

    Code +3000164IT

    Beschreibung k.water e k.air Soluzioni per l’integrazione degli impianti HVAC

    Sprache ITA

    Datum 09/09/2019

    Release 2.0

    Code +3000171ZH

    Beschreibung On Show at China Refrigeration 2019

    Sprache CHI

    Datum 01/04/2019

    Release 2.0

    Code +3000127EN

    Beschreibung High efficiency management for residential heat pumps

    Sprache ENG

    Datum 01/10/2018

    Release 2.0

    Code +3000179ES.pdf

    Beschreibung On Show - Climatización y Refrigeración 2019

    Sprache SPA

    Datum 01/10/2018

    Release 1.0

    Code +3000176EN

    Beschreibung On show at Chillventa 2018

    Sprache ENG

    Datum 01/10/2018

    Release 1.0

    Code +3000106PL - Euroshop

    Beschreibung ON SHOW - Euroshop

    Sprache POL

    Datum 05/03/2017

    Release 3.0

    Code +3000106EN_chillventa

    Beschreibung On Show - Chillventa 2016

    Sprache ENG

    Datum 08/10/2016

    Release 2.0


Images

  • High resolution images
    Code Beschreibung Sprache Datum * Release
    Code PH19LPG30K-pGDX7-white

    Beschreibung pGDX-CAREL-Terminals-Unit Terminals

    Sprache ALL

    Datum 02/09/2021

    Release R.0

    Code PH19LPG301-pGDX7

    Beschreibung pGDX-CAREL-Terminals-Unit Terminals

    Sprache ALL

    Datum 02/09/2021

    Release R.0

    Code PH19LPG302-pGDX10

    Beschreibung pGDX-CAREL-Terminals-Unit Terminals

    Sprache ALL

    Datum 02/09/2021

    Release R.0

    Code PH19LPG304-pGDX15

    Beschreibung pGDX-CAREL-Terminals-Unit Terminals

    Sprache ALL

    Datum 02/09/2021

    Release R.0

    Code PH16LPG304-pGDX-white

    Beschreibung pGDX-CAREL-Terminals-Unit Terminals

    Sprache ALL

    Datum 02/09/2021

    Release R.0

    Code PH16LPG301-pGDX

    Beschreibung pGDX-CAREL-Terminals-Unit Terminals

    Sprache ALL

    Datum 02/09/2021

    Release R.0

    Code PH19LPG309-pGDX-range

    Beschreibung pGDX-CAREL-TerminalsRoom-Terminals

    Sprache ALL

    Datum 01/09/2021

    Release R.0
